Solid-State vs. High-Discharge NMC Batteries: Power Density Challenges in 4-Hour Shifts

The viability of commercial humanoid robotics does not hinge solely on vision-language foundation models or high-torque actuator design. In industrial automotive assembly lines and multi-tier logistics mezzanines, the economic barrier to adoption is power storage. Human labor is billed across predictable, continuous 8-hour shifts punctuated by scheduled breaks. For a bipedal robot to replace or augment a human line technician, it must reliably operate for a minimum continuous window of four hours under heavy physical workloads before docking or swapping power modules.

Meeting this four-hour operational threshold in a bipedal form factor pushes electrochemical engineering to its physical limits.

Unlike electric passenger vehicles—which benefit from expansive horizontal underbody skateboard platforms with hundreds of kilograms of structural volume—a humanoid must package its entire energy reservoir within the narrow boundaries of its upper torso or pelvic core. Add weight to the battery pack, and the robot’s lower-limb actuators draw exponentially higher continuous current simply to stabilize the extra mass against gravity, erasing potential range gains.

Today, commercial platforms like Tesla Optimus Gen 2, Figure 02, and Boston Dynamics Electric Atlas rely on high-discharge Nickel-Manganese-Cobalt (NMC) lithium-ion cells (such as high-rate 21700 or structural 4680 formats). These cells balance volumetric energy density with the high continuous and burst discharge rates (C-rates) needed for dynamic stabilization.

Simultaneously, the robotics sector looks toward solid-state batteries (SSBs) featuring ceramic, sulfide, or polymer solid electrolytes as the technological step-change that will unlock true multi-shift runtime.

This deep engineering analysis examines the electrochemical compromises, burst discharge dynamics, thermal saturation boundaries, and packaging densities that define the race between High-Discharge NMC and Solid-State batteries in 4-hour industrial humanoid operations.

Key Architectural Takeaways

• The 4-Hour Energy Budget: A 70 kg industrial biped drawing a continuous 800 W to 1,200 W (actuators, onboard dual-GPU compute, sensors, and cooling) demands an onboard net capacity of 3.2 kWh to 4.8 kWh within an envelope under 15 kg.

• The Burst C-Rate Bottleneck: Bipedal walking requires dynamic balance recovery; an unexpected stumble or heavy 25 kg box lift triggers immediate 10C to 20C power spikes that conventional high-density energy cells cannot deliver without severe voltage sag.

• Thermal Saturation in Confined Chassis: Liquid-electrolyte NMC cells produce intense internal resistive Joule heating (I2R) during high-torque lifts, demanding heavy heatsinks that compete directly with cell payload volume.

• Solid-State Bottlenecks: While SSBs promise 400+ Wh/kg and eliminate thermal runaway risks, current commercial prototypes suffer from low interfacial ion conductivity, high internal impedance at ambient temperatures, and limited high-C burst discharge.

• The Modern Consensus: High-discharge NMC cylindrical cells currently lead commercial production via quick-swap modular topologies, while solid-state integration will depend on resolving high-pressure stack mechanics and sub-zero conductivity.

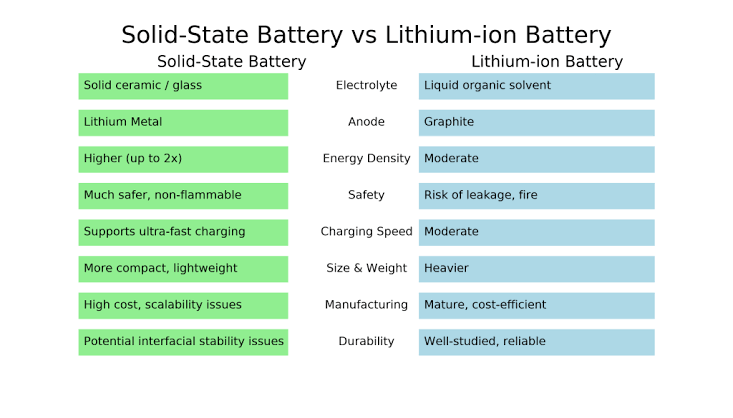

Quick Specs: High-Discharge NMC vs. Solid-State Battery Systems

The Humanoid Power Budget: Sizing a 4-Hour Energy Reservoir

To understand why battery chemistry dictates humanoid chassis geometry, one must quantify the electrical consumption of a working biped:

A 70 kg industrial humanoid (such as Figure 02 or Tesla Optimus) moving through an automotive assembly cell does not operate with the steady, flat power draw of an electric golf cart or warehouse AMR. Its electrical system experiences constant fluctuations across three operational subsystems:

Component Subsystem 1: Mechatronic Locomotion & Manipulation (60% to 75% Total Draw)

• Steady-State Walking (1.2 m/s): 400 W to 650 W of continuous baseline current driving lower-limb brushless motors to swing legs and maintain the Zero-Moment Point (ZMP).

• Static Holding (Holding 20 kg part): 250 W to 500 W drawn across shoulder and elbow actuators holding high torque at zero velocity, dissipating power as heat.

• Peak Dynamic Events (Squatting, dynamic balance recovery, explosive lifts): Surge bursts leaping to 3,500 W to 6,000 W for duration windows of 500 milliseconds to 5 seconds.

↓ (Systemic Computational Draw)

Component Subsystem 2: High-Density Edge AI Computing & Sensor Telemetry (15% to 25%)

• High-end neural processors (dual NVIDIA Jetson Thor or custom automotive-derived SoCs) executing real-time Vision-Language-Action (VLA) foundation models draw 150 W to 300 W continuously.

• Multi-camera stereo streams, solid-state 3D LiDAR arrays, high-frequency IMUs, and optical tactile finger skins consume an additional 40 W to 70 W.

↓ (Thermal Rejection Demands)

Component Subsystem 3: Thermal Management & Auxiliary Systems (10% to 15%)

• High-flow liquid coolant pumps, variable-speed radiator fans, and active BMS safety circuitry draw 80 W to 180 W, scaling upward when ambient shop-floor temperatures exceed 30°C.

The Total Mathematical Energy Equation: A continuous average power consumption of 1,000 Watts (1.0 kW) across a standard 4-hour operational shift requires a minimum usable energy reserve of 4.0 kWh. Factoring in depth-of-discharge (DoD) buffers to prevent cell degradation (capping discharge at 10% state-of-charge), the physical pack capacity must reach roughly 4.4 kWh.

Under current high-discharge cylindrical NMC cells delivering pack-level energy densities around 220 Wh/kg, a 4.4 kWh pack weighs 20 kg (44 lbs)—representing nearly 28% of the robot’s entire gross vehicle weight.

The Peak Burst Problem: Why C-Rate Dictates Dynamic Stability

Energy density (Watt-hours per kilogram) governs how long a robot can operate; power density (Watts per kilogram, or C-rate) governs whether the robot can keep its balance when bumped.

Discharge Dynamic 1: The High-C Dynamic Stumble Recovery

• When a 70 kg humanoid steps on an unexpected metal bracket or is struck by a human technician, its whole-body balance controller has less than 80 milliseconds to apply counter-torque.

• The hip pitch and knee actuators demand instantaneous current surges from the main DC bus (typically 48V to 96V).

• The battery pack must spike from a continuous 1C discharge (4.4 kW) to an explosive 10C or 15C burst (40 kW to 60 kW) to prevent the robot from hitting the concrete.

↓ (Electrochemical Inversion)

Discharge Dynamic 2: The Voltage Sag Hazard

• If the battery internal resistance (equivalent series resistance, or ESR) is too high, pulling massive current causes sudden voltage sag:

• If the bus voltage drops below the low-voltage cutoff threshold of the edge computing module, the robot suffers an instantaneous digital brownout: the AI compute crashes mid-step, instantly dropping the robot.

Why High-Discharge NMC Leads the Burst Challenge: High-discharge cylindrical cells (such as Samsung 25S/30Q, Molicel P45B, or Tesla’s 4680 with tabless shingle designs) feature optimized electrode winding geometries. The continuous copper/aluminum tabless current collector minimizes internal path resistance down to single-digit milliohms ($<5\text{ m}\Omega$). Consequently, high-discharge NMC cells deliver massive 20C bursts with minimal voltage sag, ensuring stable inverter power during aggressive balancing maneuvers.

The Current Solid-State Hurdle: All-solid-state batteries replace liquid organic electrolytes with solid ceramic pellets, sulfides, or cross-linked polymers. Lithium ions move through solid crystalline lattices significantly slower than through porous liquid solvents.

At ambient factory temperatures (20°C to 25°C), the solid-electrolyte interphase (SEI) impedance remains high. While an SSB can provide phenomenal steady-state energy density at 0.5C to 1C, demanding an immediate 10C burst induces severe internal polarization, rapid voltage collapse, and localized current crowding that can spawn short-circuiting lithium dendrites through the solid ceramic barrier.

Thermal Saturation: The Closed-Torso Dissipation Trap

In an electric automobile, liquid-glycol coolant circuits continuously reject pack heat through a wide, forward-facing frontal radiator grille exposed to 100 km/h ram-air.

In a bipedal humanoid, the battery pack is hermetically sealed inside the structural torso, bounded by outer fiberglass or carbon-fiber aesthetic cowlings. The robot walks at a human pace (1.2 m/s), providing zero meaningful ram-air cooling.

Thermal Reality 1: High-Discharge NMC Thermal Generation

• During continuous cycling and high-C lifting events, internal cell resistance generates massive resistive Joule heating:

• Because NMC cells degrade rapidly and risk thermal runaway if core temperatures exceed 55°C to 60°C, the pack must integrate active thermal management: serpentine liquid-cooling plates, phase-change interface materials, and radiator loops.

• This parasitic cooling infrastructure adds 2 to 4 kg of non-energy-storing dead mass to the upper chest, lifting the robot’s center of gravity and worsening balance stability.

↓ (Safety & Thermal Architecture Inversion)

Thermal Reality 2: The Solid-State Thermal Immunity Advantage

• Solid-state chemistries eliminate the volatile, flammable liquid organic carbonate solvents that cause thermal runaway in conventional lithium-ion cells.

• Ceramic and sulfide electrolytes remain structurally stable up to 300°C to 400°C.

• An SSB pack can safely operate at elevated internal core temperatures (50°C to 65°C)—temperatures that actually improve solid-state ion conductivity—drastically reducing the required size and mass of onboard cooling radiators.

Packaging Topologies: Tesla Structural Integration vs. Apptronik Swapping

Because battery packs present such extreme mass penalties, humanoid developers are split between two operational packaging philosophies:

Packaging Strategy 1: The Integrated Structural Battery (Tesla Optimus & Figure 02)

• Architecture: Custom cylindrical cells (NMC/NCA chemistry) integrated directly into the robot’s load-bearing chassis. The battery casing functions as the load-bearing structural spine and pelvic casting.

• Volumetric Benefit: Eliminates duplicate internal walls, mounting brackets, and connector housings, achieving a high pack-to-chassis structural mass efficiency.

• Operational Drawback: The robot must physically stand at an inductive wall charger or plug into a high-rate tether for 45 to 90 minutes after every 4-hour shift, dropping the machine’s 24-hour equipment utilization rate.

↓ (Operational Shift Paradigm)

Packaging Strategy 2: Modular Quick-Release Swappable Packs (Apptronik Apollo)

• Architecture: Self-contained, quick-release battery cassettes (LFP or high-discharge NMC) housed in the central torso, secured via automotive-grade blind-mate high-current latching connectors.

• Operational Benefit: A human line worker or an automated robotic swapping station unlatches the depleted pack and inserts a fresh pack in under 60 seconds, delivering 98%+ continuous machine uptime across three consecutive 8-hour industrial shifts.

• Volumetric Penalty: Demands reinforced dual-walled external armor to survive drops, heavy quick-latch mechanical interlocks, and duplicate thermal plates, reducing net energy density by 15% to 20% compared to structural packs.

Engineering Video Reference: Battery Systems & Thermal Disassembly

The mechanical realities of packing high-energy cells into tight structural enclosures, managing tabless current collectors, and mitigating thermal runaway risks are documented in high-voltage hardware teardowns:

High-Discharge Battery Engineering & Architecture:

Watch modern high-density cell structures and thermal assemblies in motion: Inside the Tesla 4680 Structural Battery Pack Architecture

• Key Observation Points:

  • Tabless continuous-ribbon current collector integration for ultra-low internal resistance (Rint​).

  • Serpentine liquid cooling ribbons passing directly between cylindrical cell walls.

  • Structural polyurethane potting foam distributing mechanical torsional loads across the chassis.

Solid-State Engineering Realities: The Unresolved Mechanical Bottlenecks

While marketing forecasts suggest solid-state batteries will instantly double humanoid operating time, production mechatronics face physical bottlenecks that remain unaddressed in standard promotional roadmaps:

Phase 1: The Mechanical Clamping Pressure Requirement (1 to 5 MPa)

• Unlike liquid electrolytes that naturally wet every microscopic pore of an active electrode, solid ceramic separators must maintain microscopic physical contact with solid lithium metal or silicon anodes.

• As lithium ions strip and plate during charge/discharge cycles, the anode expands and contracts volumetrically.

• To prevent microscopic voids and interface delamination, all-solid-state pouch cells must be kept under continuous mechanical compression ranging from 1 to 5 megapascals (10 to 50 bar).

• Packaging high-tension spring plates, carbon-fiber tie rods, and titanium compression plates inside a humanoid torso adds kilograms of structural deadweight, neutralizing gravimetric energy gains.

↓ (Chemical Synthesis Trade-Off)

Phase 2: Ambient Low-Temperature Impedance Spikes

• In cold distribution warehouses (e.g., cold-storage food logistics running at 2°C to 4°C), solid-state ionic conductivity falls off a cliff.

• Without active electric pre-heaters consuming onboard energy to bring the ceramic core up to 40°C+, internal impedance prevents the robot from drawing the high surge currents required to walk, creating an operational non-starter in refrigerated supply chains.

Engineering Verdict & Field Evaluation

High-Discharge NMC: Pros & Operational Strengths

• Proven High C-Rate Burst Capability: Easily delivers 10C to 20C transient currents without catastrophic voltage sag, ensuring stable dynamic balance recovery.

• Mature Automotive Supply Chain: Benefits from billions of dollars in global gigafactory scaling, driving cell costs down below $100/kWh.

• Low Interfacial Impedance: Operates reliably across variable industrial temperature swings without requiring high-pressure mechanical clamping plates.

High-Discharge NMC: Limitations & Engineering Risks

• Mass Floor Bottleneck: At ~250 Wh/kg, a 4-hour industrial pack weighs 18 to 22 kg, consuming nearly a third of the humanoid’s total payload budget.

• Severe Thermal Runaway Risk: Flammable liquid organic electrolytes require complex structural isolation and liquid cooling to prevent chain-reaction fires in close proximity to human operators.

All-Solid-State (SSB): Pros & Operational Strengths

• Revolutionary Gravimetric Density: Projections of 400 to 450+ Wh/kg allow humanoids to achieve 6 to 8 hours of continuous operation within the exact same structural mass envelope.

• Intrinsic Thermal Immunity: Non-flammable solid ceramic or sulfide separators eliminate the physical possibility of high-energy chemical fires on the factory floor.

• Volumetric Miniaturization: Extremely high Wh/L allows humanoids to maintain slender, anthropomorphic chest dimensions without bulky external battery humps.

All-Solid-State (SSB): Limitations & Engineering Risks

• Weak Transient Power Density: High solid-state interfacial resistance limits high-C burst discharge, choking the high-torque balance recovery loops needed to prevent falls.

• Heavy Compression Clamping Hardware: Demands heavy mechanical spring rigs to maintain 1 to 5 MPa stack pressure, offsetting real-world pack-level gravimetric density.

• Prohibitive Cost and Scarcity: Limited to boutique pilot-line manufacturing, costing 4x to 8x more than automotive-grade cylindrical NMC cells.

The Bot.to Benchmark Verdict:

For commercial humanoid deployments through the medium term, High-Discharge NMC Cylindrical Cells (2170 / 4680 Formats) remain the uncontested industry standard. While solid-state technology captures public imagination, a humanoid robot’s survival depends far more on power density (the ability to pull 15C burst currents to prevent a fall) than on theoretical energy density alone. Deploying high-discharge NMC within modular, quick-swap cassettes provides the most reliable path to achieving 24/7 continuous industrial productivity.

Solid-State Batteries will dominate the subsequent hardware decade, but only after electrochemical developers solve the low-temperature ionic conductivity bottleneck and engineer self-compressing, zero-pressure solid separators that eliminate the need for heavy external clamping chassis.

Frequently Asked Questions (FAQ)

Q: Why don’t humanoid robots use the high-capacity lithium-ion batteries found in smartphones?

A: Smartphone cells (LCO chemistry) are engineered for high energy density and very low, slow discharge rates (under 0.5C). If a bipedal robot attempted to draw the sudden 15C (3,000+ W) burst current required to balance during a trip, a smartphone battery would suffer extreme voltage sag, overheat immediately, and likely enter thermal runaway.

Q: How long can modern humanoid robots work on a single battery charge?

A: In active industrial tasks (walking, lifting 15 to 20 kg items, running dual-GPU neural vision), most production humanoids (Tesla Optimus, Figure 02, Boston Dynamics Atlas) achieve 2 to 4 hours of continuous operation on a 2.0 to 4.4 kWh pack before requiring a recharge or battery swap.

Q: What is the difference between gravimetric energy density and volumetric energy density?

A: Gravimetric energy density (Wh/kg) measures how much electrical energy a battery stores per unit of weight, which determines how heavy the robot’s pack will be. Volumetric energy density (Wh/L) measures how much energy is stored per unit of physical space, determining whether the battery can fit inside a slender, human-sized chest cavity without protruding.

Q: Why are solid-state batteries considered safer for domestic and factory robots?

A: Conventional lithium-ion batteries use liquid organic solvents as their electrolyte, which are highly flammable and vaporize violently during an internal short circuit (thermal runaway). Solid-state batteries replace this liquid with non-flammable solid ceramic, glass, or polymer barriers, preventing fire even if the cell is punctured or crushed in an accident.
