Tactile Sensing Breakthroughs: How GelSight and Optical Skins Give Humanoids a Sense of Touch

In robotics, visual perception has advanced rapidly over the past decade. High-resolution stereo RGB-D cameras, time-of-flight sensors, and multi-modal Vision-Language-Action (VLA) foundation models allow bipedal humanoids to navigate cluttered industrial facilities and locate target items with centimeter accuracy.

Yet, the moment a robot’s fingers make physical contact with an object, vision frequently breaks down.

When a humanoid reaches into a dark bin or wraps its fingers around a part, its own palm, wrists, and digits physically occlude the target from head-mounted cameras. Line-of-sight sightlines disappear entirely at the micro-scale boundary between skin and surface. A robot relying solely on vision is blind at the exact millisecond where contact physics dictate success or failure: the mechanical interface where normal force, surface friction, micro-texture, and lateral shear slip determine whether a fragile drinking glass is gently secured or crushed, or whether an oily steel fastener slips from grasp.

For decades, roboticists relied on electronic skins—piezoresistive, capacitive, or barometric sensor arrays. While functional for measuring raw vertical clamp force, these traditional arrays suffer from low spatial resolution, severe sensor hysteresis, electromagnetic noise interference, and fragile wiring harnesses containing hundreds of delicate leads running through rotating joints.

To overcome these physical bottlenecks, modern humanoid engineering has pivoted toward optical tactile sensing, led by the commercialization and miniaturization of MIT’s GelSight technology and its derivatives (such as DIGIT, Tac-Fresh, and custom vision-based optical pads).

By converting mechanical touch into a high-resolution optical computer vision problem, optical skins give humanoids a superhuman sense of touch: micro-meter 3D topological reconstruction, sub-millisecond dynamic slip detection, and 3D shear-vector tracking packed directly into compliant fingertips.

Key Architectural Takeaways

• The Optical Tactile Paradigm: Replaces complex electrical wiring grids with a simple, high-resolution internal micro-camera focused on the back of an illuminated, deformable elastomeric gel pad.

• Photometric Stereo Topography: Uses multi-color directional LEDs (RGB) inside the fingertip shell to reconstruct 3D surface height maps with micrometer spatial resolution from single camera frames.

• Dense Contact Vector Tracking: Embedded marker arrays within the clear elastomer track lateral shear strain, twisting moments, and localized Coulomb friction boundaries.

• Zero Electronic Routing at the Skin: Eliminates fragile copper sensor grids on high-wear surfaces; the sensor interface is a passive, easily replaceable silicone membrane.

• Embodied AI Integration: Translates tactile contact directly into standardized image tensor formats, enabling off-the-shelf convolutional networks and vision transformers (ViTs) to process touch without custom signal-processing pipelines.

Quick Specs: Electronic Tactile Arrays vs. GelSight Optical Skins

The Working Principle: Turning Physical Contact into Computer Vision

The core innovation of GelSight-class optical tactile sensing is that it abstracts away the complex solid-state physics of tactile transducing films by reframing contact mechanics as a standard optical imaging task.

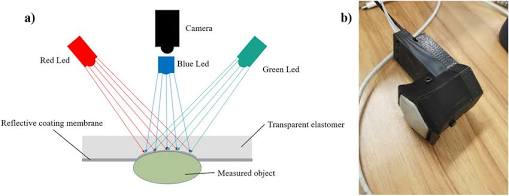

The internal structure of an optical tactile fingertip functions like a self-contained, micro-scale photographic studio sealed inside a rigid finger shell:

Phase 1: Physical Surface Deformation

• An external object (e.g., an embossed coin, a screw head, or a slick plastic rim) presses against the outer elastomeric membrane.

• The outer surface of the clear silicone or polyurethane gel pad is coated with an ultra-thin, matte-reflective metallic or pigmented paint layer.

• The gel deforms compliantly, taking the exact reverse 3D physical contour of the contacting object’s surface topography.

↓ (Optical Illumination & Encoding)

Phase 2: Directional Multi-Color Illumination

• Arrayed around the internal perimeter of the chamber are miniature surface-mount LEDs emitting light in distinct primary colors (typically Red, Green, and Blue) from different incident angles.

• Because the internal coating is opaque and uniformly reflective, the surface behaves as a Lambertian reflector.

• Indentations in the gel cause local surface slopes that reflect red light in one direction, green in another, and blue in a third, physically encoding surface normal angles into color gradients.

↓ (Sensor Capture & Volumetric Reconstruction)

Phase 3: Photometric Stereo & Height-Map Generation

• A miniature high-frame-rate CMOS camera (or micro-endoscope lens) positioned behind the clear elastomer captures the multi-colored reflection.

• Using classical photometric stereo algorithms or lightweight neural decoders, the system computes the surface normal gradient (p,q)=(∂x∂z​,∂y∂z​) at every single pixel.

• Integrating these gradients yields a full, metric 3D point cloud of the contact patch down to micrometer tolerances in less than 5 milliseconds.

By using an opaque reflective coating, GelSight completely isolates the visual sensing channel from external environmental lighting. Whether the robot operates under blinding sunlight, fluctuating factory neon lights, or pitch-black darkness inside a machine enclosure, the internal imaging chamber remains completely dark, illuminated exclusively by its calibrated internal LEDs.

Shear Fields and Slip Detection: The Marker-Tracking Breakthrough

Measuring 3D surface shape is essential for identifying parts, but preventing objects from dropping during dynamic movement requires measuring friction and shear stress.

When a humanoid arm accelerates holding a 5 kg metal tool, inertial forces pull the tool sideways across the skin. If the robot cannot detect this sliding motion before it exceeds the friction cone limit, the tool slips and drops.

Tracking Layer 1: The Embedded Pigment Marker Matrix

• A matrix of microscopic black pigment dots or fluorescent beads is printed directly onto the inner layer of the transparent silicone elastomer, beneath the reflective membrane.

• The internal camera tracks the 2D Cartesian positions $(u,v)$ of these dots across consecutive high-speed video frames.

↓ (Deformation Field Analysis)

Tracking Layer 2: Real-Time Strain Field Mapping

• When an object presses into the finger and experiences lateral torque, the gel stretches elastomatically.

• Optical flow tracking of the dot matrix generates a real-time vector field indicating the magnitude and direction of surface traction forces across the entire contact surface.

• By calculating the displacement divergence ($\nabla \cdot D$) and curl ($\nabla \times D$), the system separates pure normal compression from rotational torsional slip.

↓ (Closed-Loop Friction Recovery)

Tracking Layer 3: Incipient Slip Clamping

• Slip does not occur everywhere on a contact patch simultaneously. It begins at the outer periphery where normal contact pressure is lowest (incipient micro-slip) and travels inward toward the center of the grip.

• Optical tactile sensors detect the peripheral dot markers sliding while the central markers remain static.

• This provides a 1 to 2 millisecond early warning window: the low-level motor controller increases normal grip torque immediately, arresting the slip before the entire object breaks free from static friction.

Electronic vs. Optical Tactile: The Manufacturing & Maintenance Reality

While optical skins deliver exceptional resolution, roboticists must evaluate the physical compromises between electronic sensor films and vision-based optical chambers:

Engineering Profile 1: Traditional Electronic Skins (Piezoresistive / Capacitive)

• Structural Footprint: Extremely thin (0.5 mm to 2.0 mm). They wrap easily around curved finger joints and palm knuckles without consuming mechanical volume.

• Wiring Bottleneck: A high-density 16-DoF hand requires hundreds of individual analog sensor lines running through the wrists and forearms. Over thousands of continuous flex cycles, these copper micro-traces suffer from mechanical work hardening and fatigue fractures.

• Wear Vulnerability: The delicate sensing elements sit directly beneath a thin rubber exterior. In industrial tasks involving sharp metal stampings or rough cast iron, abrasions directly cut through sensor traces, requiring complete disassembly of the hand to replace bonded PCBs.

↓ (Mechatronic Trade-Off Paradigm)

Engineering Profile 2: Vision-Based Optical Skins (GelSight Class)

• Structural Footprint: Bulkier. Optical sensors require a focal distance (typically 10 mm to 25 mm) between the internal CMOS lens and the elastomeric surface, limiting their deployment to fingertip pads and flat palm regions.

• Wiring Simplicity: Replaces hundreds of analog sensor wires with a single shielded digital camera bus (such as MIPI-CSI-2 or USB 3.0) carrying standard digital video frames.

• Field Serviceability: The electronic components (camera, LEDs, PCB) sit protected inside a rigid, sealed structural aluminum or composite fingertip shell. The high-wear element—the silicone gel pad—is purely mechanical. If a sharp metal burr tears the silicone membrane, a line technician unclips the damaged gel pad, snaps a fresh $5 molded membrane into place, and resumes operation with zero sensor recalibration.

Tactile Foundations: Bridging Touch into Vision-Language-Action Models

The most profound advantage of optical tactile sensing lies in its software compatibility with modern artificial intelligence.

In traditional robotics, incorporating tactile feedback required complex, specialized mathematical state estimators. Roboticists had to convert fluctuating resistance values from piezoresistive arrays into simulated pressure matrices, bridge high-frequency noise spikes through custom Kalman filters, and hand-craft heuristic grasp-stability metrics.

Optical tactile sensors eliminate this entire translation layer by transforming touch directly into standard digital image tensors:

1. Sensor Level: Standardized Tensor Output

• The fingertip camera outputs standard RGB video frames $(H\times W\times C)$ at 60 to 200 frames per second.

• Contact depth is extracted as a normalized single-channel height-map $(H\times W\times 1)$.

↓ (Zero-Shot Architecture Compatibility)

2. Model Level: Direct Vision Backbone Integration

• Because tactile data is literally an image, it feeds directly into standard computer vision neural backbones (ResNet, ConvNeXt, Vision Transformers) without architectural modifications.

• Pretrained vision models understand spatial concepts like edges, textures, contours, and surface gradients out of the box.

↓ (Multimodal Embodied AI Fusion)

3. VLA Policy Level: Multi-View Spatial Reasoning

• Modern multimodal models (such as Figure’s Helix, 1X’s Redwood, or Google DeepMind’s RT-series) treat tactile fingertips as simply another camera perspective.

• The foundation model attends simultaneously to head-mounted environmental cameras (macro-view) and fingertip contact cameras (micro-view).

• If the head camera sees a hand reach into a dark pocket to grab a screw, the model switches its attention tokens to the tactile sensor, confirming thread engagement, part orientation, and material hardness entirely through the optical touch channel.

Operational Video Reference: Optical Tactile Precision in Action

The practical capability of optical tactile sensors to reconstruct micro-textures, read embossed characters, and measure delicate shear vectors is documented in experimental manipulation testing:

GelSight High-Resolution Tactile Demonstration:

Watch the sensor process contact mechanics in real time: MIT GelSight: High-Resolution Tactile Sensing for Robots

• Key Observation Points:

  • Immediate 3D photometric stereo reconstruction of fine surface textures and micro-ridges.

  • Real-time tracking of internal marker displacement vectors under variable shear loads.

  • High-compliance grasping of delicate and slippery objects without surface scuffing or crushing.

Commercial Outlook: Integrating Optical Skins onto Production Humanoids

As humanoids transition from laboratory demonstrations to active commercial deployments, tactile sensing is evolving from an academic luxury into a mandatory production subsystem.

Sector 1: Precision Automotive & Electronics Assembly

• Fastener Insertion: Threading screws and seating rubber O-rings cannot be done reliably with vision alone. Optical skins feel when threads cross, instantly cutting motor torque to prevent stripped threads.

• Flexible Cable Routing: Seating flexible wiring harnesses into vehicle door frames requires verifying that the plastic retaining clip has physically clicked into place—a tactile event verified in milliseconds by shear-marker deflections.

↓ (Market Domain Expansion)

Sector 2: Domestic & Service Robotics

• Handling Fragile Goods: In residential kitchens, robots must handle fragile porcelain mugs, soft fruit, and slippery wet glassware. Optical skins provide the precise contact force thresholds needed to prevent drops while avoiding crushing.

• Blind Tactile Search: Finding keys in a backpack or locating a light switch behind a curtain relies entirely on tactile exploration rather than line-of-sight cameras.

By converting the physics of touch into the language of computer vision, GelSight and its optical successors have solved one of the most stubborn challenges in robotics. They provide humanoids with the spatial awareness, compliance, and real-time friction feedback necessary to handle the unstructured physical world with the same tactile confidence as human hands.

Engineering Verdict & Field Evaluation

Optical Tactile Skins (GelSight Class): Pros & Operational Strengths

• Superhuman Spatial Resolution: Provides micrometer-level topological reconstruction (exceeding human mechanoreceptor density) from standard CMOS micro-cameras.

• Full 3D Traction & Slip Awareness: Simultaneously measures 3D force vectors, torsional shear, and incipient slip, preventing dropped objects before full break-away occurs.

• Rugged Electronic Isolation: The high-wear contact pad contains no electronics or delicate copper traces; swapping a torn membrane is an inexpensive, fast mechanical replacement.

• Seamless AI Tensor Ingestion: Touch data is formatted natively as image tensors, plugging directly into standard Vision Transformers (ViTs) and VLA policies.

Optical Tactile Skins (GelSight Class): Limitations & Engineering Risks

• Volumetric Packaging Depth: Requires optical stand-off distance (10 mm to 25 mm) between camera lens and membrane, making integration into ultra-slender child-sized fingers difficult.

• Frame-Rate Bandwidth Caps: Standard CMOS image sensors refresh at 60 Hz to 250 Hz, trailing the ultra-high kilohertz response speeds of raw piezoresistive elements.

• Edge & Corner Blind Spots: Planar or semi-domed lens fields of view create difficulty in providing continuous, seamless 360-degree tactile coverage around complex finger joints.

The Bot.to Benchmark Verdict:

GelSight and optical tactile skins represent the definitive future of high-precision robotic manipulation. While electronic skins will continue to cover large structural areas (forearms, chests, thighs) where simple collision-detection proximity is sufficient, the high-dexterity fingertips of humanoids will be dominated by optical vision-based tactile modules. The ability to transform mechanical touch into high-resolution visual tensors allows robotics companies to leverage the entire global ecosystem of machine-vision silicon and transformer architectures, fundamentally closing the loop on autonomous physical dexterity.

Frequently Asked Questions (FAQ)

Q: How does a GelSight sensor actually measure touch?

A: A GelSight sensor uses an internal micro-camera focused on the back of a clear elastomeric silicone pad coated with an opaque, reflective metallic membrane. When an object presses against the outside of the pad, multi-colored LEDs (RGB) illuminate the indentation from different angles. The camera records these reflections, and photometric stereo algorithms convert the color gradients into a high-resolution 3D point cloud of the contact patch.

Q: What is the main advantage of optical skins over electronic tactile skins?

A: Optical skins deliver over 100 times higher spatial resolution than electronic skins, measuring fine surface textures, micro-slips, and shear vectors with micrometer detail. Furthermore, because all sensitive electronic components (camera and LEDs) are protected inside a rigid housing, the exposed silicone contact skin can be cheaply replaced when worn out without replacing expensive circuit boards.

Q: Can optical tactile sensors measure slip before an object drops?

A: Yes. By embedding a matrix of micro-markers inside the transparent silicone, the internal camera tracks surface shear deformation. When an object begins to slide, the markers at the outer edge slip first (incipient slip) while the center remains stuck. The sensor detects this peripheral movement in 1 to 2 milliseconds, allowing the robot to increase clamp pressure before the entire item drops.

Q: Why don’t all robot hands use GelSight sensors today?

A: Optical tactile sensors require a physical focal depth between the camera lens and the silicone surface (typically 12 mm to 25 mm). This makes them bulkier than ultra-thin electronic sensor films, complicating integration into very small, slender robotic fingers or high-density underactuated grippers.
