Deep Reinforcement Learning for Locomotion: How Humanoids Learn to Walk on Uneven Terrain

For decades, the standard approach to bipedal locomotion was anchored in classical analytical mechanics: Zero Moment Point (ZMP) stability, Linear Inverted Pendulum Models (LIPM), and dynamic Model Predictive Control (MPC).

Pioneered by platforms like Honda ASIMO and Boston Dynamics Atlas, these analytical controllers solved systems of differential equations to guarantee that the robot’s ground reaction force resultant remained within the polygon of support.

While analytical MPC delivers predictable trajectory tracking on flat, pre-surveyed concrete slabs, it struggles in unstructured brownfield environments:

• Cracked concrete curbs and ramp transitions violate linear pendulum assumptions.

• Unanchored gravel, slick wet metal plates, and deformable foam packing mats introduce unknown contact compliance.

• Analytical quadratic programs (QPs) running at 500 Hz fail to converge before the swing leg strikes an unexpected 20 mm height variation.

• The computational cost of non-linear whole-body MPC scales exponentially with multi-contact terrain formulations.

To achieve robust, fluid locomotion across uneven terrain, the humanoid robotics sector shifted toward Deep Reinforcement Learning (DRL).

By training neural network policies inside massively parallel GPU physics simulators (such as NVIDIA Isaac Gym, Isaac Lab, and MuJoCo), humanoids simulate tens of thousands of cumulative operating years in a matter of hours.

Through millions of trial-and-error iterations across procedural heightfields, stairs, and slippery surfaces, the neural policy develops dynamic, compliant reflexes that mimic biological nervous systems.

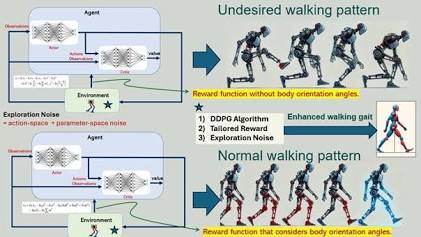

Reinforcement learning gait optimization pipeline. Source: Engineered Science Publisher

Yet, training a neural network inside a simulator is fundamentally distinct from deploying that policy onto a 70-kilogram physical robot on a real factory floor.

Bridging the notorious Sim-to-Real gap—where unmodeled actuator latency, gearbox backlash, sensor noise, and structural compliance can destabilize a simulation-trained policy within three steps—requires precise mathematical scaffolding.

This technical breakdown examines the neural policy architectures, massively parallel simulation workflows, domain randomization parameters, reward engineering formulations, and Sim-to-Real deployment pipelines that enable bipedal humanoids to traverse complex, uneven industrial terrain.

Key Architectural Takeaways

• The Physics Acceleration Engine: GPU-accelerated simulation frameworks (NVIDIA Isaac Gym / Isaac Lab) run 4,096 to 16,384 humanoid instances concurrently in tensor memory, compressing decades of physical trial-and-error locomotion training into 6 to 12 hours.

• The Asymmetric Actor-Critic Topology: During training, the Critic network accesses privileged simulation ground truth (exact foot contact states, local heightfield scans, ground friction coefficients); the deployed Actor policy receives only real-world onboard sensory inputs (IMU rates, joint encoders, history buffers).

• Sim-to-Real Domain Randomization: Zero-shot real-world transfer succeeds by randomizing physical parameters during training: motor friction ($\pm 30\%$), link masses ($\pm 15\%$), latency jitter ($5\text{ to }35\text{ ms}$), and ground restitution coefficients.

• Reward Shaping vs. Exploitation: Locomotion reward formulations balance forward velocity tracking with heavy quadratic penalties on joint acceleration, torque rates, impact forces, and torso roll/pitch oscillations to prevent unnatural “joint twitching.”

• Blind vs. Vision-Assisted Locomotion: Modern DRL pipelines use blind proprioceptive policies to clear terrain irregularities up to $10\text{ cm}$ using high-frequency ankle-knee reflex arcs alone; crossing higher obstacles ($>15\text{ cm}$) requires fusing exteroceptive depth elevation maps via temporal transformer backbones.

Quick Specs: Classical Analytical MPC vs. Deep Reinforcement Learning Locomotion

Massively Parallel Simulation and the Sim-to-Real Pipeline

Before a physical humanoid takes a single step, the control policy must master balance inside a deterministic simulation environment.

Historically, simulators like Gazebo evaluated physics serially on CPU cores, requiring days of compute time to train simple quadrupeds.

Modern humanoid development relies on tensorized GPU physics engines:

By keeping all observation buffers, policy weights, physics states, and action steps inside GPU VRAM, algorithms like Proximal Policy Optimization (PPO) update policy tensors directly without CPU-GPU bus bottlenecks, achieving over 100,000 frames per second of simulated experience.

Sim-to-Real Training Pipeline

Sequential Pipeline Breakdown

1. Procedural Terrain Synthesis

   • The training engine generates diverse synthetic environments using procedural noise and geometric heightfields.

   • Curriculum learning incrementally scales difficulty, progressing from flat concrete to rocky slopes, variable stair rises, and discrete stepping stones.

↓

2. Massively Parallel Instantiation (GPU Tensor Memory)

   • Thousands of identical humanoid instances are loaded directly into GPU memory without CPU-to-GPU bus transfers.

   • PhysX 5 evaluates multi-body contact dynamics concurrently, delivering millions of simulated environment steps per second.

↓

3. Domain Randomization Injection

   • Each simulation instance is assigned randomized physical properties: payload mass, link center-of-mass offsets, joint damping, motor back-EMF constants, ground friction, and communication bus delays.

   • Actuator Dynamics Networks (ADNs) run in-loop to reproduce physical gearbox backlash, stiction, and motor thermal limits.

↓

4. Asymmetric Actor-Critic Convergence (PPO)

   • The centralized Critic evaluates state values using privileged simulation data (contact forces, exact terrain profiles, slip ratios).

   • The Actor policy updates its weights using only real-world sensory feeds (IMU telemetry, joint states, prior action buffer), forcing it to infer physical dynamics from motion history.

↓

5. Edge Optimization & Onboard Deployment

   • The trained Actor policy is stripped of the Critic, converted to ONNX, and compiled via NVIDIA TensorRT for the robot’s onboard AI accelerator.

   • Quantization into INT8/FP16 ensures predictable inference within a deterministic 20 ms cycle budget, ready for zero-shot real-world transfer.

1. Terrain Generation Matrices

Training begins on flat ground. As the policy’s survival time increases, the simulator’s Curriculum Learning Module dynamically spawns procedural terrain variations:

• Random heightfields with Gaussian roughness ($\sigma =2\text{ to }8\text{ cm}$).

• Discontinuous steps and stairs with variable tread depths ($20\text{ to }35\text{ cm}$) and rise heights ($5\text{ to }18\text{ cm}$).

• Discrete stepping stones surrounded by drop zones, forcing precise foot placement.

• Low-friction patches simulating wet epoxy, spilled oil, or ice ($\mu =0.10\text{ to }0.30$).

2. Asymmetric Actor-Critic Architecture

A key breakthrough in sim-to-real stability is the Asymmetric Information Setup:

• The Critic Network (Training Only): Operates with full privileged state information. It reads the exact ground reaction forces under each foot, local micro-terrain elevations, linear center-of-mass velocities, and external disturbance force vectors.

• The Actor Policy (Real-World Deployment): Operates strictly on observations available via physical sensors: a temporal history buffer ($T=5\text{ to }20\text{ steps}$) of joint positions ($q$), joint velocities (q˙​), root angular velocity from the base IMU ($\omega$), projected gravity vectors, and the previous action command (at−1​).

• By training the Actor to match the value predictions of the all-knowing Critic, the Actor learns to infer unmeasured terrain properties implicitly from its proprioceptive history.

Reward Engineering: Transforming Jittery Policies into Industrial Gaits

The greatest failure mode of naive reinforcement learning is reward hacking.

If an engineer simply rewards forward velocity (v” />x​) and survival time, the neural network converges on energetically violent, bizarrely contorted locomotion patterns—flailing arms, high-frequency foot dragging, and joint vibration that destroys harmonic drive gearboxes in the physical world.

Achieving a clean, natural, and mechanically safe gait requires a balanced Multi-Objective Reward Formulation:

Reward / Penalty Component	Formulation / Target	Operational Purpose	Failure Mode if Unconstrained
Linear Velocity Tracking	exp(−∥vxy,cmd​−vxy​∥2/σv​)	Matches commanded speed targets ($0\text{ to }2.0\text{ m/s}$)	Robot refuses to walk or drifts laterally
Angular Velocity Tracking	exp(−(ωz,cmd​−ωz​)2/σω​)	Controls yaw rate for precise directional turning	Robot spins out of control during turns
Base Height & Orientation	∥ztorso​−znominal​∥2+∥g” />​proj​−z^∥2	Enforces upright posture; stabilizes camera arrays	Deep crouch-walking; excessive torso pitching
Torque Magnitude Penalty	−∑∥τi​∥2	Minimizes energy draw; preserves battery capacity	Excessive thermal saturation in joint motors
Torque Rate Penalty (τ˙)	−∑∥τt​−τt−1​∥2	Suppresses high-frequency command oscillations	Violent actuator vibrations; stripped gear teeth
Joint Acceleration Penalty	−∑∥q¨​i​∥2	Enforces smooth mechanical velocity curves	High mechanical shock waves through leg linkages
Foot Impact Penalty	−∥Fcontact​∥2 during early touchdown	Commands soft, compliant footfalls	Hard heel-strikes that shatter foot sensors
Feet Air Time Reward	∑(tair​−0.35) during swing phase	Incentivizes dynamic stepping over sliding/shuffling	Robot shuffles feet along floor without lifting

Bridging the Sim-to-Real Gap: Domain Randomization Dynamics

A policy trained in an unvarying, idealized physics simulation will fail within seconds on real hardware.

Physics engines use simplified contact models (like rigid spring-damper approximations) that cannot capture the subtle hysteresis of rubber footpads or the structural flexion of carbon-fiber leg tubes.

To guarantee zero-shot physical transfer, engineers apply Extensive Domain Randomization (DR) during training, forcing the policy to learn control strategies that remain stable across a broad envelope of physical variations:

The Actuator Dynamics Network (ADN)

Simple domain randomization is often insufficient for high-torque robotic actuators.

In physical cycloidal and strain-wave drives, nonlinear effects—such as gear friction, motor driver dead-zones, and battery voltage drop under load—prevent the actuator from reaching its commanded torque instantly.

State-of-the-art pipelines train a compact neural network—an Actuator Dynamics Network (ADN)—on real physical dynamometer bench data.

The ADN runs inside the simulation loop, replacing the idealized physics engine joint model with a realistic data-driven actuator response function.

Real-Time Policy Deployment: The Onboard Inference Loop

Once the policy achieves stable performance across millions of randomized simulation iterations, the PyTorch model is frozen, pruned, and exported via ONNX (Open Neural Network Exchange) for deployment on the humanoid’s edge compute platform (such as an NVIDIA Jetson Orin or embedded industrial x86 processor):

Notice that the policy does not output raw, unmediated motor currents.

Instead, the network outputs joint position deviations (q^​) relative to a nominal standing pose.

These targets are tracked by localized, high-frequency Proportional-Derivative (PD) controllers running on motor inverters.

This hybrid design ensures that if the neural network stalls or drops a frame, the low-level hardware controllers hold the current joint positions under compliant feedback, preventing the robot from collapsing instantly to the floor.

Vision-Assisted Terrain Navigation: Integrating Exteroception

Blind locomotion policies excel at absorbing minor, unexpected terrain disruptions (such as stepping on an unmapped wrench, a low door sill, or a small gravel pile) using high-frequency leg compliance.

However, when confronted with stairs, high loading curbs ($>15\text{ cm}$), or wide floor trenches, blind locomotion fails: the swing foot strikes the vertical face of the obstacle mid-stride, tripping the robot.

Navigating complex vertical architecture requires augmenting the proprioceptive network with Exteroception (Vision and Elevation Mapping):

• Real-Time Elevation Mapping: Head-mounted stereo depth cameras and downward-facing 3D Time-of-Flight (ToF) sensors project point clouds into a local 2.5D Elevation Heightfield Map ($2.0\times 2.0\text{ meters}$ at $2.5\text{ cm}$ resolution) centered on the robot’s base.

• The Student-Teacher Vision Pipeline:

  1. Teacher Phase (Simulation): An RL policy is trained with direct, noiseless access to surrounding terrain elevation grids.

  2. Student Phase (Vision Ingestion): A student policy processes noisy, partially occluded visual point clouds and depth images through an attention-based Temporal Transformer, training the model to reconstruct terrain geometry and predict future foot clearances.

  3. The vision-augmented network dynamically plans high-stepping swing trajectories, lifting the foot over obstacles and landing securely on the center of elevated platforms.

Engineering Verdict & Field Evaluation

Deep Reinforcement Learning Locomotion: Pros & Strategic Strengths

• Exceptional Dynamic Recovery: DRL policies naturally perform dynamic recovery behaviors—such as quick lateral side-steps, cross-over balance steps, and compliant ankle adjustments—that are difficult to program analytically.

• Zero-Shot Rough Terrain Traversability: Traverses gravel, grass, snow, industrial cable bridges, and clutter without requiring prior 3D CAD models of the environment.

• Low Onboard Compute Overhead: While training consumes thousands of GPU-hours, running the final frozen policy on edge hardware requires minimal compute (typically 5% to 15% of an edge GPU/CPU core), freeing resources for high-level VLA manipulation.

• Broad Terrain Generalization: A single unified neural policy manages standing balance, push recovery, variable-speed walking, turning, and backwards stepping.

Deep Reinforcement Learning Locomotion: Limitations & Engineering Bottlenecks

• Black-Box Determinism Deficit: Unlike analytical control laws with formal Lyapunov stability proofs, neural policies are statistical approximators; validating mathematical safety (ISO 13849 PLd) across all operating edge cases remains an industry challenge.

• Sim-to-Real Actuator Vulnerability: If domain randomization fails to capture specific physical resonance modes, the policy can drive high-frequency torque ripples that damage gearbox bearings.

• Reward Engineering Complexity: Developing balanced reward functions requires weeks of trial-and-error; misaligned weights can lead to subtle, undesirable behaviors (such as asymmetric knee loading or gait limps).

The Bot.to Benchmark Verdict:

Deep Reinforcement Learning has decisively won the race for dynamic bipedal locomotion.

The era of manually tuning complex analytical inverted-pendulum formulas and solving fragile quadratic programs on the fly is closing for mobile bipedal robotics.

By leveraging GPU-accelerated physics engines, asymmetric actor-critic architectures, and aggressive domain randomization, DRL delivers the dynamic stability, impact resilience, and terrain adaptability required for humanoids to navigate chaotic real-world facilities.

When paired with a deterministic low-level safety supervisor and localized impedance motor controllers, deep reinforcement learning transforms bipedal walking from an unstable balancing act into a reliable, compliant foundation for industrial automation.

Frequently Asked Questions (FAQ)

Q: Why is Deep Reinforcement Learning better than classical MPC for humanoid walking?

A: Classical Model Predictive Control (MPC) relies on simplified physics models (such as treating the robot as a single point mass on an inverted pendulum). These models struggle with complex contact dynamics, foot slippage, and abrupt terrain variations. Deep Reinforcement Learning (DRL) trains on full, non-linear multi-body physics across millions of simulated variations, allowing the robot to learn natural, adaptive balance reflexes that handle unexpected bumps, slips, and shoves far more effectively.

Q: What is the “Sim-to-Real gap” in humanoid robotics?

A: The Sim-to-Real gap refers to the performance drop that occurs when a policy trained in an idealized computer simulation is deployed onto a real physical robot. Discrepancies in joint friction, actuator response times, sensor noise, battery voltage sag, and floor materials can cause a simulation-trained robot to lose its balance in the physical world. Engineers close this gap using Domain Randomization (varying physical properties during training) and realistic data-driven actuator models.

Q: Can a humanoid robot walk over obstacles without cameras?

A: Yes. Modern humanoids use blind proprioceptive locomotion policies that rely entirely on internal joint encoders and inertial measurement units (IMUs). By analyzing historical patterns of leg motion and foot contact resistance, the neural network detects when a foot strikes a raised surface (up to 8 to 10 cm high) and reflexively adjusts its balance and posture without needing cameras. However, taller obstacles and stairs require vision-based elevation maps for reliable traversal.

Q: How long does it take to train a humanoid robot to walk using DRL?

A: Using modern GPU-accelerated simulation platforms like NVIDIA Isaac Lab or Isaac Gym—which simulate thousands of humanoid robots simultaneously in parallel—a complete bipedal locomotion policy can be trained from scratch in 6 to 12 hours on a single high-end workstation or small GPU cluster. This represents decades of simulated physical walking experience compressed into half a day.

Explore related platforms and technical profiles in the Bot.to Humanoid Directory or read our direct hardware breakdown: Vision-Language-Action (VLA) Architecture: How Neural Nets Map Pixels Directly to Motor Torques.
