Machine Tending with Bipeds: Replacing Dedicated CNC Loaders with General-Purpose Workers

In discrete precision manufacturing, computer numerical control (CNC) machining centers—including 5-axis vertical milling machines, horizontal machining centers (HMCs), and multi-spindle turning centers—represent massive capital investments. However, the profitability of a CNC spindle is governed by a singular, ruthless operational metric: Overall Equipment Effectiveness (OEE) and spindle utilization uptime.

A $350,000 5-axis DMG MORI or Mazak machine tool generates zero revenue while sitting idle waiting for an operator to unclamp a finished aeronautical impeller, blast chips with compressed air, deburr mounting flanges, and align a fresh raw titanium billet into the chuck.

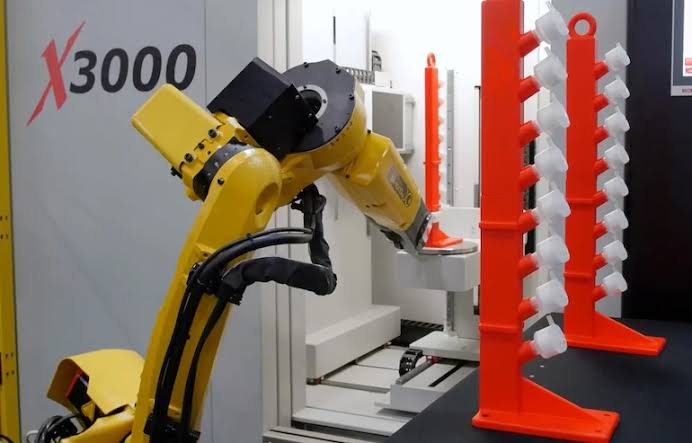

Historically, the manufacturing sector attempted to solve this with dedicated automation: overhead gantry loaders, collaborative robot (cobot) pedestals, and pneumatic pallet pool changers.

While highly effective in high-volume, low-mix (HVLM) continuous production lines—such as dedicated automotive engine block plants—these rigid systems fail in the broader job shop economy: High-Mix, Low-Volume (HMLV) precision machining.

Bolting a stationary six-axis articulated arm in front of a CNC enclosure obstructs manual operator access, requires expensive custom safety fencing or optical area scanners, demands weeks of specialized ladder logic programming, and creates permanent physical floor obstacles.

The emergence of general-purpose bipedal humanoids breaks this operational deadlock.

By decoupling machine manipulation from a fixed floor anchor, bipedal platforms navigate human-designed shop floors, service multiple non-adjacent CNC enclosures across aisle paths, actuate manual machine doors and hydraulic vise handles directly, and transition between machine tending, quality metrology inspection, and parts deburring without requiring hardwired cell integration.

Key Architectural Takeaways

• The High-Mix Bottleneck: Dedicated robotic CNC loaders require $60,000 to $120,000 in upfront structural integration per spindle, rendering them financially non-viable for batch runs under 500 units.

• Mobility Over Dedicated Pedestals: A single bipedal humanoid dynamically tends an entire machine cell (3 to 5 CNC centers), walking between enclosures rather than remaining tied to a single spindle.

• Non-Invasive Brownfield Integration: Humanoids interface with legacy CNC machines through the existing human hardware interface: opening sliding door latches, actuating pneumatic foot pedals, and entering cycles via physical control panel pushbuttons.

• Tactile Chuck Seating Compliance: Loading raw castings into three-jaw chucks requires active spiral search compliance and joint torque feedback to prevent misaligned workpieces from damaging precision spindle jaws.

• Spindle Utilization Multiplier: Deploying autonomous bipeds on “lights-out” third shifts boosts CNC spindle utilization from typical small-shop averages of 45% up to 85% to 92%, dramatically compressing machine tool amortization schedules.

Quick Specs: Dedicated CNC Loaders vs. Mobile Bipedal Humanoids

The Anatomy of the Workflow: Autonomous CNC Machine Tending

Autonomous machine tending involves far more than simply placing a metal cylinder into a vise. The robot must execute an interconnected chain of sensory-motor tasks, adjusting for chips, coolant spray, and clamping verification.

1. Cycle Verification & Door Opening

   • The humanoid navigates to the machine enclosure following an audible or optical stack-light state transition (green to amber/blue).

   • External RGB-D machine vision verifies the spindle has come to a complete physical stop.

   • The robot extends its end effector, grasps the manual sliding door handle, and pushes it open across the linear guide rail.

↓

2. Chip Clearance and Spindle Washdown

   • Machining generates hot metal swarf, chips, and high-pressure flood coolant residue.

   • The humanoid grasps an onboard or station-mounted pneumatic air-blow nozzle, directing short pulses of compressed air across the vise jaws, locating pins, and chuck contact faces to prevent trapped chips from introducing runout errors.

↓

3. Finished Part Extraction & Vise De-Actuation

   • The robot moves its secondary gripper to support the finished machined component.

   • It steps on the pneumatic foot pedal switch or triggers the vise unclamp button, releasing clamping pressure.

   • Arm joint impedance loops withdraw the part smoothly along the Z-axis, preventing tool strikes or jaw marring.

↓

4. Raw Billet Loading and Tactile Seating

   • The humanoid retrieves a fresh billet from an adjacent raw materials cart or staging pallet.

   • It inserts the stock into the open chuck or vise.

   • The Seating Reflex: The robot applies a controlled axial seating force (15 to 25 N) holding the part firmly against the backstop locating pins while activating the clamp control, guaranteeing dimensional Z-depth repeatability under ±0.02 mm.

↓

5. Cycle Initiation and Post-Process Deburring

   • The robot slides the machine safety door shut and triggers the physical green “Cycle Start” pushbutton.

   • While the CNC runs its 8-minute cutting sequence, the humanoid turns to an auxiliary bench to perform manual file deburring, blow-off drying, and dimensional verification via a digital bore micrometer.

Overcoming High-Mix Challenges: Kinematic Flexibility vs. Hard Tooling

Traditional machine shop automation fails in high-mix environments because changing part setups demands changing hard automation infrastructure:

Automation Setup Friction Comparison

Setup Transition Workflow

1. Dedicated Automation Setup Overhead

   • Fixture engineers design, machine, and heat-treat custom steel jaws to match unique raw casting geometries.

   • Controls technicians map dedicated M-code relays and hardwire emergency-stop interfaces into the CNC cabinet.

   • Anchored floor pedestals permanently restrict line-of-sight and physical clearance during manual setup validation.

↓

2. Bipedal Zero-Friction Adaptation

   • Multi-DoF compliant hands conform to varied geometric stock profiles using closed-loop neural grasp primitives.

   • Spatial vision stacks locate existing operator pushbuttons, manual door handles, and analog pneumatic pedals directly.

   • The platform walks clear of the machining envelope, leaving the door completely open for machinists to prove out G-code programs.

1. Eliminating Capital-Intensive Machine Modifications Deploying an industrial robot arm to tend an older Haas VF-2, Mazak Quick Turn, or Doosan lathe traditionally requires retrofitting the machine tool with automatic pneumatic door openers, automated chuck actuators, and complex M-code fieldbus relay interfaces. This retrofitting typically costs $15,000 to $25,000 per machine tool above the cost of the robot itself.

A humanoid robot interacts with the machine exactly as a human machinist does: it slides the existing manual door, steps on the mechanical foot pedal, and pushes the physical control buttons on the Fanuc, Heidenhain, or Siemens control panel. The CNC center requires zero electrical modifications.

2. Aisle Clearance and Machine Accessibility CNC setups require human intervention: changing worn endmills, dialing in touch probes, setting work coordinate offsets (G54), and clearing chip auger jams.

• A cobot on a fixed floor pedestal permanently crowds the machine door, turning routine tool changes into awkward ergonomic struggles.

• A bipedal humanoid simply takes three steps backward or walks to an adjacent machine tool, leaving the physical work envelope open for the master machinist.

Tactile Compliance in Precision Clamping

Precision machining operates in tolerances measured in microns ($\mu \text{m}$). The most dangerous failure mode during automated machine tending is part cocking—when a billet enters a hydraulic vise or three-jaw chuck at a slight fraction-of-a-degree angle and clamps out-of-square.

If a machine cycles with an unseated workpiece, the cutting tool strikes the stock with asymmetric depth-of-cut, causing broken solid-carbide endmills, ruined workpieces, and potentially catastrophic spindle collisions costing over $30,000 in spindle rebuilds.

Tactile Clamping Quality Gate

1. Stock Insertion into Chuck

   • Robot arm transfers raw cylindrical or prismatic stock into the open three-jaw chuck or hydraulic vise envelope.

   • Trajectory velocity derates to fine-approach speed upon entering the spindle volume.

↓

2. Visual Macro-Alignment

   • Wrist-mounted RGB-D sensor performs spatial registration against chuck bore centerlines.

   • Joint controllers align billet axis within an initial $\pm 2\text{ mm}$ radial clearance envelope.

↓

3. Axial Search Dither

   • End effector switches from position control to active impedance control.

   • System executes high-frequency, low-amplitude micro-dithering to clear chip burrs and locate internal register shoulders.

↓

4. Contact Verification

   • Six-axis wrist force-torque sensor monitors the normal axial load vector ($F_z$).

   • Forward feed halts immediately upon registering sustained contact where $F_z > 15\text{ N}$, confirming the part is resting flush against locating stops.

↓

5. Clamping Pressure Engagement

   • Robot actuates the hydraulic chuck foot pedal or presses the pneumatic clamp control interface.

   • Clamping jaws close radially onto the workpiece while the arm maintains passive compliance to accommodate centering shift.

↓

6. Load-Cell Delta Check

   • Sensor array evaluates post-clamp torque and transverse shear forces to detect cocking, skew, or trapped chips.

   • System verifies that grip force distributions remain symmetric across all contact surfaces.

↓

7. Cycle Safe Flag

   • Control pipeline validates all mechanical and dimensional parameters within tolerance limits.

   • Robot retracts end effector to clearance boundaries and issues the physical cycle-start command to begin machining.

To eliminate part-cocking risks, bipedal machine tending deploys active tactile impedance control:

1. Passive Geometric Searching

   • The end-effector fingers utilize compliant elastomer pads with embedded optical or piezoresistive arrays.

   • As the billet meets the chuck jaws, the joint actuators yield compliantly, allowing the part to self-align against the rigid locating ground faces.

↓

2. Force-Monitored Seating Verification

   • Wrist six-axis force-torque sensors monitor the axial push force vector (Fz​).

   • The system commands the clamp to close only when reaction force metrics confirm the workpiece is resting flush against the internal shoulder stop.

   • If an un-blown metal chip is trapped behind the part, the force profile registers asymmetric tilt moments, causing the humanoid to abort clamping, extract the billet, and re-run the pneumatic blow-off nozzle sequence.

Shop Floor Economics: The Multi-Spindle Multiplier

The financial justification for humanoid machine tending rests on breaking the 1:1 robot-to-machine capital ratio.

In a typical mid-sized precision job shop, a single machinist earns $28.00 to $34.00 per hour (fully burdened at $42.00 to $50.00/hour) and manages two to three CNC machines during an 8-hour shift. At night, the machines sit dark and idle because hiring second- and third-shift machinists is difficult due to persistent skilled labor shortages.

The Economic Multiplier Model (3-Machine CNC Cell):

• Target Machinery: Three 3-axis/5-axis CNC vertical machining centers.

• Operating Profile: Adding a continuous 8-hour “lights-out” unattended night shift (2,500 additional productive spindle hours per machine annually).

• Equipment Asset Base: 1 Bipedal Humanoid deployed under a managed Robot-as-a-Service (RaaS) framework at $18.00 per hour.

Financial Comparative Matrix: Machine Tending Paradigms (3-Machine Cell)

The Machine Utilization Dynamic: By keeping three spindles running through the night, the shop captures 7,500 total hours of added cutting capacity per year.

The humanoid does not need to match the rapid setup speed of a master CAM programmer. Its economic brief is simple: keep the spindles turning while the lights are out.

Even operating at an unhurried cycle pace (45 seconds to load and verify a part), it easily services three machines whose cutting cycle times run between 6 and 20 minutes each.

Environmental Hazards: Swarf, Coolant, and Mechatronic Sealing

Operating inside a CNC machine shop introduces physical hazards that destroy consumer electronics and unsealed research robots:

1. Aerosolized Coolant Mist and Ingress Protection (IP Rating)

   • High-pressure coolant pumps blast water-soluble synthetic emulsions at 1,000 PSI, generating airborne chemical mists.

   • Machine-tending humanoids require minimum IP65 ingress protection across all limb cowlings, rotary joint seals, and optical sensor turrets to prevent liquid ingress from shorting high-voltage DC bus lines.

↓

2. Conductive Metal Swarf and Magnetic Contamination

   • Cast iron, steel, and aluminum machining produces needle-fine metallic chips and magnetic dust.

   • Brushless DC motors and high-torque frameless stators feature strong permanent magnets.

   • If joint seals degrade, metallic dust is drawn into motor air gaps, causing mechanical friction scoring and electrical phase shorts. Rotary joint outputs must incorporate labyrinth seals and spring-energized dynamic lip seals.

↓

3. Oily, Low-Friction Concrete Surfaces

   • Coolant overspray inevitably coats shop floors, creating low-friction hazard zones ($\mu =0.25$ to $0.35$).

   • Humanoid locomotion stacks must continuously run dynamic slip estimation routines, adapting footstep shear trajectories and using high-durometer oil-resistant nitrile rubber sole compounds to ensure balance stability.

Engineering Verdict & Field Evaluation

Bipedal Machine Tending: Pros & Operational Strengths

• Multi-Spindle Capital Efficiency: A single mobile platform services multiple CNC machines, spreading automation investment across multiple machine tools.

• Non-Invasive Brownfield Integration: Eliminates expensive automated door retrofits, pneumatic chuck wiring, and hardwired PLC safety interlocks.

• Preserves Floor Mobility: Steps out of the workcell during daytime setup runs, keeping the machine accessible to human machinists.

• Continuous Multi-Task Utilization: Deburrs parts, wipes chips, inspects tolerances, and moves finished totes while machines are mid-cut.

Bipedal Machine Tending: Limitations & Engineering Bottlenecks

• Aggressive Operating Environment: Coolant mist and sharp metal chips demand strict IP65 sealing, raising joint manufacturing costs.

• Slower Single-Part Loading Speeds: A biped takes 25 to 45 seconds to approach, open, seat, and clear a machine door, compared to 8 to 12 seconds for an optimized fixed pneumatic gantry loader.

• Floor Contamination Risks: Oily floors and stray chip mats increase the risk of bipedal slipping, demanding conservative walking speeds.

The Bot.to Benchmark Verdict:

Machine tending with bipedal humanoids is one of the most commercially viable near-term applications for physical AI in manufacturing.

While high-volume automotive production lines can justify the multi-million-dollar capital investments required for dedicated fixed gantries and pallet pools, the broader world of high-mix precision job shops cannot.

By delivering non-invasive, brownfield-compatible operation across multiple machine tools without blocking operator access, mobile bipeds turn idle night shifts into billable cutting hours.

Humanoid robots will not replace master machinists; they will handle the repetitive physical grind of loading raw stock and clearing chips, allowing human machinists to focus on CAM programming, tool optimization, and high-precision setup verification.

Frequently Asked Questions (FAQ)

Q: Why use a humanoid robot for CNC machine tending instead of a standard collaborative robotic arm?

A: A standard collaborative robot (cobot) is permanently bolted to the floor in front of a single CNC machine, blocking human access to the spindle and servicing only that specific machine tool. A bipedal humanoid can walk between 3 to 5 different machines in a cell, open manual sliding doors, step on foot pedals, and step completely out of the way whenever a human machinist needs to set up a new job.

Q: Can a humanoid robot achieve the precision needed to load a CNC chuck correctly?

A: Yes. Humanoids achieve precise loading using active tactile impedance control and six-axis wrist force-torque feedback. The robot dynamically wiggles and slides the raw stock against the chuck jaws until reaction force sensors verify that the part is resting flush against the locating shoulder stops, achieving Z-depth placement repeatability under ±0.02 mm.

Q: Does deploying a humanoid require modifying the CNC machine’s computer or wiring?

A: No. That is the core advantage of brownfield deployment. The humanoid operates the machine tool through the existing human interface: it slides the manual door, presses physical control buttons, steps on the clamping foot pedal, and inspects stack lights visually. The machine tool requires zero electrical modifications or custom PLC programming.

Q: How do humanoid robots handle sharp metal chips and cutting coolant?

A: Industrial-tier humanoids deployed in machine shops are engineered with IP65-rated environmental seals, labyrinth joint protection, and protective gaiters to shield rotary motors from water-soluble coolant mist. They handle chip accumulation directly by operating pneumatic compressed-air blow-off nozzles to blast swarf off locating surfaces before seating fresh parts.
