Cobots vs. Humanoid Robots: When Does a Mobile Biped Beat a Fixed Robotic Arm?

Collaborative robots (cobots)—led by pioneers like Universal Robots, FANUC (CRX series), and ABB (GoFa)—transformed manufacturing floor economics by eliminating heavy perimeter safety fencing. By capping joint velocities, monitoring motor current deviations, and integrating contact-stop force sensors, cobots allowed humans and articulated arms to share the same operational envelope under ISO/TS 15066 safety standards.

Yet, despite over a decade of widespread adoption, plant managers encounter hard architectural limitations with collaborative arms. A cobot remains fundamentally a fixed pedestal mechanism. It is bolted to a concrete slab or clamped to a heavy welded cart, restricted to a radial hemispherical reach envelope of 500 mm to 1,800 mm, and dependent on dedicated part-feeding equipment or custom mechanical jigs.

The industrial emergence of bipedal humanoid platforms—such as Figure 02, Apptronik Apollo, and Agility Digit—introduces a direct architectural challenger.

Rather than anchoring an arm to a single machine tool or workstation, an embodied bipedal system couples manipulation with full locomotive mobility, human-proportioned vertical reach, and multivariable spatial perception.

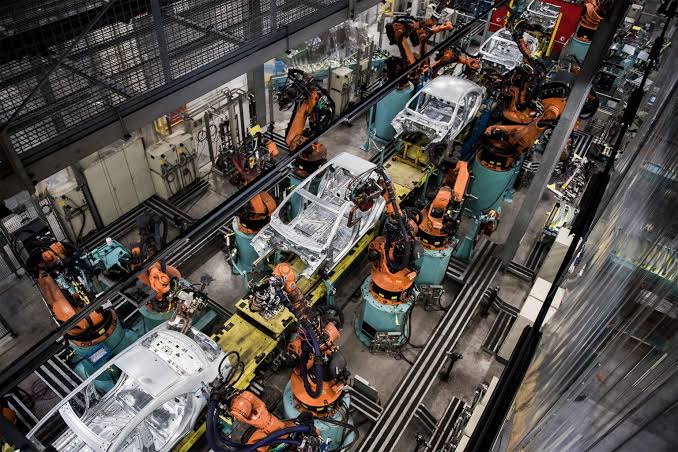

Automated articulated arms on an automotive line. Source: National Geographic

This technical analysis outlines the engineering and capital boundaries between fixed collaborative arms and mobile bipedal humanoids. We examine kinematic envelopes, infrastructure costs, task switching speeds, and payload capacities to define the precise operational conditions where a mobile biped beats a fixed arm.

Key Architectural Takeaways

• The 1:1 vs. 1:N Operational Multiplier: A fixed cobot is tethered to a single workstation or machine tool; a mobile bipedal humanoid services between 3 and 5 disparate workstations across an aisle, multiplying capital efficiency.

• The Last-Meter Brownfield Gap: Cobots require workpieces to be presented within a rigid coordinate envelope via vibratory bowls or roller tracks; humanoids walk to standard shelving, open human-scale latches, and handle unorganized totes.

• Repeatability vs. Adaptability Tradeoff: Cobots deliver superior mechanical repeatability ($\pm 0.03\text{ mm}$) for high-speed precision fastening; humanoids deliver superior spatial adaptability ($\pm 1.0\text{ mm}$ with active tactile compliance) across non-standardized tasks.

• Capital Breakeven Inflection: For isolated, single-step operations with stable part feeding, cobots remain the undisputed economic victor ($35k to $60k fully integrated). For multi-station, low-volume workflows requiring cross-aisle transit and human-scale reach, humanoids eliminate secondary automation overhead, yielding faster cumulative payback.

Quick Specs: Collaborative Robot Arm vs. Mobile Bipedal Humanoid

Kinematic and Spatial Comparison: Static Sphere vs. Dynamic Envelope

The fundamental divergence between cobots and humanoids lies in their manipulation workspace geometry.

Workspace Envelope Architectural Comparison

Kinematic Transition Dynamics

1. Fixed Base Constraints (Cobot Pedestal Envelope)

   • Base mounting transform is physically bolted to concrete or heavy steel carts, freezing its coordinate origin.

   • Work envelope is strictly bounded by the mechanical linkage lengths of the upper arm and forearm segments.

   • Approaching low floor totes or high storage shelves forces the wrist and elbow joints into boundary singularities, requiring speed reductions or triggering torque limit faults.

↓

2. Floating Base Adaptability (Biped Dynamic Envelope)

   • Base coordinate system translates continuously across plant space using active footstep and center-of-mass planners.

   • Lower-body degrees of freedom execute deep squats to drop the shoulder baseline flush with floor-level totes ($0.0\text{ m}$) or extend upward to reach top shelf tiers ($2.0\text{ m}$).

   • When an arm approaches an internal kinematic singularity or joint limit, the balance controller takes a minor lateral or angular step, resetting the arm’s manipulability ellipsoid to optimal control ranges without interrupting the active cycle.

1. The Reach Envelope Limitation of Cobots When an engineer mounts a cobot to tend a machine or assemble parts, the robot’s base coordinate frame is locked. If an incoming part tote is placed 100 millimeters outside the arm’s reach envelope, the robot faults with a kinematic singularity error. Expanding the reach requires mounting the cobot onto an auxiliary 7th-axis linear floor rail.

However, linear floor rails cost between $20,000 and $50,000, introduce mechanical trip hazards across the walkway, collect chips and coolant, and permanently block the aisle to human traffic.

2. Dynamic Whole-Body Locomotion A bipedal humanoid decouples manipulation from an anchor point. If an assembly component shifts by 300 mm, or if a supplier delivers a pallet on the opposite side of the aisle, the robot does not require kinematic redesign:

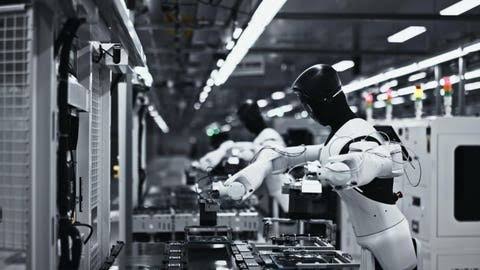

Mobile humanoid on an active production line. Source: Forbes

1. Spatial Navigation and Obstacle Traversal

   • Locomotion planners command discrete footstep placements across uneven concrete slabs, dynamic floor cords, and drainage trenches.

   • Whole-body Model Predictive Control (MPC) continuously modulates pelvic position and trunk inclination to maintain balance.

↓

2. Kinematic Decoupling via Stance Adjustment

   • When executing high-reach tasks (e.g., pulling a part from a top warehouse shelf at 1.9 m), the humanoid extends its hip and ankle linkages vertically.

   • When retrieving a stamping from a floor-level dunnage bin (0.1 m), the legs execute an anthropomorphic or digitigrade squat, bringing the shoulder joints close to the workpiece.

↓

3. In-Cell Clearance and Handoff

   • Upon completing the handling sequence, the robot steps backward out of the active envelope, restoring open physical access to human co-workers without physical barricades.

The Infrastructure Dilemma: Island Automation vs. Facility Mobility

The total cost of deploying robotics in a manufacturing plant is rarely determined by the price of the robot alone. Industrial system integrators rely on the 1:3 Capital Multiplier: for every $1.00 spent on a robotic arm, an additional $2.00 to $3.00 is spent on ancillary automation infrastructure.

The Ancillary Equipment Burden of Fixed Cobots:

• Automated Part Feeders: Because a fixed cobot cannot walk to a supply rack, workpieces must be brought directly into its reach radius using pneumatic bowl feeders, indexing rotary tables, or powered flat-belt conveyors ($10,000 to $35,000 per cell).

• Automated Machine Actuators: If tending a legacy CNC mill or injection molding press, the machine requires automated pneumatic door openers, solenoid-actuated chucks, and custom PLC relay cards ($8,000 to $20,000 per machine).

• Safety Integration Hardware: While collaborative, running an arm at high production speeds requires supplementary area safety scanners (e.g., SICK or Keyence laser scanners) to throttle velocities when humans approach ($5,000 to $12,000).

System Capital Allocation Comparison

Capital Flow Breakdown

1. Dedicated Cobot Cell Investment Allocation

   • Core Manipulator Purchase (35%): Covers the base collaborative arm, controller enclosure, and standard teach pendant.

   • Bespoke Tooling & Part Feeding (40%): Integrators design, machine, and assemble dedicated mechanical parts positioners, automated pneumatic slide tables, and rigid steel gripping fingers.

   • System Integration & Cabling (25%): Engineering hours spent retrofitting automatic CNC doors, pulling conduit, mapping safety fieldbus registers, and validating light curtains.

   • Net Strategic Outcome: High sunk capital permanently anchored to a single machine tool; when the product design changes, the tooling and integration investment is scrapped.

↓

2. Humanoid Biped Investment Allocation

   • Mobile Platform / RaaS Framework (80%): Capital flows almost entirely into the versatile robotic platform, multi-DoF compliant hands, and continuous onboard AI compute.

   • Standard Staging Dunnage (10%): Simple off-the-shelf plastic totes, gravity-drop tables, or baseline floor fixtures with zero custom pneumatic mechanisms.

   • Spatial Mapping & Safety Commissioning (10%): Rapid workcell ingestion via stereo point clouds, digital twin registration, and collision zone safety parameterization.

   • Net Strategic Outcome: Capital remains completely liquid; the platform acts as a versatile general-purpose worker that walks to any workstation across the plant as production requirements shift.

The Humanoid Alternative: A bipedal humanoid bypasses this secondary infrastructure by using the human hardware interface:

• It approaches legacy machines and turns manual door handles directly.

• It actuates standard pneumatic clamping foot switches with its feet.

• It transports parts using existing plastic KLT totes, wooden pallets, and hand trucks.

• The Net Capital Effect: The enterprise spends more on the base robotic platform, but near zero on custom structural facility modifications.

Operational Boundary Matrix: Selecting Cobots vs. Humanoid Bipeds

To guide factory engineering teams, the trade-offs between fixed collaborative arms and mobile bipedal humanoids can be broken down across five core industrial dimensions:

Economic Modeling: Single-Station vs. Multi-Station TCO

To establish the capital crossover point, we compare a 3-year Total Cost of Ownership (TCO) model across two operational factory scenarios:

Scenario A: Single Dedicated Workstation (Tending 1 CNC Lathe)

• High-volume single-part production.

• Workpiece presented via gravity-feed chute.

Scenario B: Multi-Machine Production Cell (Tending 4 CNC Lathes across a 6-meter aisle)

• High-mix production.

• Manual sliding doors; parts stored in standard floor bins.

3-Year Total Cost of Ownership (TCO) Financial Breakdown

The Financial Takeaway:

• In Scenario A (Single Machine), the cobot wins decisively. Its lower upfront base price and mechanical simplicity deliver capital payback 3.7 months faster than a humanoid. Deploying an advanced biped for a single static fixture is capital over-engineering.

• In Scenario B (Multi-Machine Cell), the economic reality flips completely. Outfitting four machines with dedicated cobots, automatic doors, and custom parts feeders balloons upfront CapEx to $290,000. A single mobile biped walking between the four machines slashes upfront capital requirements by 65%, cutting payback down to just 8.0 months and generating over $324,000 in net 3-year cash savings.

The Hybrid Future: Cobot Arms on Mobile Humanoid Torsos

The division between cobots and humanoids is beginning to blur. Leading automation developers are recognizing that the ideal industrial worker is neither a blind pedestal arm nor a pure anthropomorphic biped trying to mimic human anatomy for its own sake.

Industrial Automation Evolutionary Trajectory

Evolutionary Sequence Breakdown

1. Static Articulated Arms (Rigid Isolation)

   • Delivers sub-millimeter positional repeatability ($\pm 0.02\text{ mm}$) and high dynamic payload capacity.

   • Trapped behind physical perimeter wire cages and light curtains to isolate dangerous high-inertia sweeps from human operators.

   • Requires parts to be fed into identical Cartesian coordinates using dedicated hard tooling.

↓

2. Collaborative Robots / Cobots (Fenceless Contact Compliance)

   • Eliminates physical safety fences by capping joint momentum and integrating motor-torque impedance sensing under ISO/TS 15066.

   • Allows close human-robot collaboration within shared assembly cells.

   • Remains tethered to a single structural floor pedestal, limiting reach to a static radial hemisphere.

↓

3. Wheeled Mobile Manipulators / AMRs (Planar Mobility)

   • Mounts multi-axis arms onto wheeled autonomous mobile bases to combine manipulation with material transport.

   • Navigates long warehouse distances using 2D/3D LiDAR SLAM.

   • Fails on vertical obstacles, requiring wide turning aisles, ramps for every elevation change, and completely flat concrete slabs.

↓

4. Legged Mobile Manipulators (Full Brownfield Versatility)

   • Couples multi-DoF dextrous manipulation with dynamic bipedal or quadrupedal locomotion.

   • Steps across industrial drainage trenches, cords, and multi-tier mezzanine access stairways.

   • Occupies a compact human-scale footprint, walking directly between non-adjacent manufacturing cells to service legacy machinery.

By mounting certified 6-DoF or 7-DoF collaborative arms onto a force-controlled bipedal or wheeled-legged torso, manufacturers achieve the best of both architectures:

• The Cobot Advantage: Established safety certifications (ISO 10218 / ISO/TS 15066), proven joint reliability, and standard industrial tool changers.

• The Humanoid Advantage: Legged mobility over curbs, steps, and narrow human walkways, combined with whole-body vertical reaching envelopes.

Engineering Verdict & Field Evaluation

Fixed Cobot Arms: Pros & Operational Strengths

• Exceptional Kinematic Precision: Sub-0.05 mm repeatability guarantees reliable performance on high-speed fastening, micro-assembly, and dispensing tasks.

• Low Single-Cell Capital Cost: Base hardware pricing ($30k to $50k) allows small-to-midsize job shops to automate high-priority bottleneck stations with minimal financial exposure.

• Matured Integration Ecosystem: Thousands of pre-certified grippers, tool changers, vision cameras, and software plugins (such as the UR+ ecosystem) streamline installation.

• Continuous Power Uptime: Direct hardwired electrical connections eliminate battery charging pauses or battery-swapping logistics.

Fixed Cobot Arms: Limitations & Bottlenecks

• Immobile Island Architecture: Locked to a single workstation; cannot move between machines or handle intra-logistics transport across the facility.

• High Ancillary Tooling Overhead: Demands custom automated parts feeders, indexing conveyors, and automated door actuators that double integration costs.

• Aisle Space Congestion: Fixed pedestals and safety scanners crowd human walkways, making routine manual machine maintenance difficult.

Mobile Bipedal Humanoids: Pros & Operational Strengths

• Multi-Station Asset Leverage: A single robot walks between multiple machines and workcells, spreading capital investment across multiple production steps.

• Native Brownfield Compatibility: Operates in human spaces without requiring automated machine door retrofits, custom part feeders, or floor modifications.

• Expansive Dynamic Reach: Squats to floor level and stretches to overhead shelving without requiring expensive, hazard-prone 7th-axis linear rails.

• Liquid Capital Re-Deployment: Can be reassigned from CNC machine tending to palletizing or kitting via software updates, without unbolting hardware.

Mobile Bipedal Humanoids: Limitations & Bottlenecks

• Lower Absolute Repeatability: Relies on visual-tactile closed loops ($\pm 0.5\text{ mm}$), making unguided sub-millimeter electronic pin insertions difficult.

• Energy Replenishment Constraints: Demands hot-swappable batteries or charging intervals, requiring operational fleet scheduling to maintain continuous shifts.

• Nascent Supply Chain & Support: Integrator networks and spare-parts pipelines are still developing compared to mature industrial robotics giants.

The Bot.to Benchmark Verdict:

A mobile bipedal humanoid beats a fixed collaborative arm when a task requires crossing space, servicing multiple non-adjacent machines, or accessing human-height infrastructure without facility alterations.

If a manufacturing process is stationary, highly repeatable, and confined to a single workstation with existing parts feeding, the fixed cobot remains the superior, lower-risk engineering choice.

However, the moment an automation deployment requires adding auxiliary linear floor rails, retrofitting automated machine doors, or buying multiple arms to tend adjacent spindles, the economics pivot sharply toward the mobile biped.

Humanoids do not render cobots obsolete; they liberate manipulation from its stationary concrete pedestal, expanding robotic automation into the 80% of brownfield factory operations that fixed arms could never economically reach.

Frequently Asked Questions (FAQ)

Q: Can a collaborative robot arm be made mobile without building a humanoid robot?

A: Yes. Mounting a collaborative robot arm onto a wheeled Autonomous Mobile Robot (AMR) or Automated Guided Vehicle (AGV)—often called a mobile manipulator—provides spatial mobility. However, wheeled bases require wide turning clearances, perfectly flat floors, and cannot step over industrial cables, drainage grates, or climb human access stairs, whereas bipedal platforms navigate human-scale brownfield environments natively.

Q: Are humanoid robots as precise and repeatable as collaborative arms?

A: No. High-end collaborative arms (such as a UR10e or FANUC CRX) achieve mechanical position repeatability between $\pm 0.02\text{ mm}$ and $\pm 0.05\text{ mm}$ because they are bolted to a rigid ground anchor. Bipedal humanoids typically operate with mechanical repeatability of $\pm 0.5\text{ mm}$ to $\pm 1.0\text{ mm}$, compensating for lower structural rigidity through closed-loop vision tracking, tactile sensing, and active force impedance control.

Q: Why do cobots often require expensive safety fencing if they are designed to be collaborative?

A: While cobots have force-limited joints that stop on human contact, safety standards (ISO/TS 15066) evaluate the entire application, including the workpiece and end-effector tooling. If a cobot manipulates a sharp sheet-metal bracket, holds a welding torch, or moves at high cycle speeds, contact with a human could cause serious injury, forcing integrators to install safety light curtains, laser area scanners, or physical perimeter fencing.

Q: At what point does buying one humanoid become cheaper than buying multiple cobots?

A: The financial breakeven typically occurs when a workcell requires automating three or more adjacent machines or stations. Outfitting three separate CNC machines with dedicated cobots, automated pneumatic door kits, parts feeders, and safety interlocks costs upwards of $200,000 to $250,000. A single mobile humanoid capable of walking between all three machines to tend them manually can be deployed for roughly $90,000 to $120,000, slashing upfront capital requirements by more than half.
